MMM MIDM MGPF1051

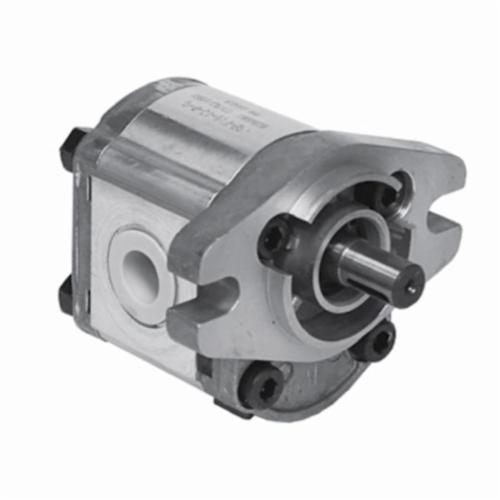

MMM MGPF1051 High Pressure Hydraulic Gear Pump, Variable Fixed/Variable, 0.31 cu-in/rev Displacement, 3625 psi, 3/4-16 Inlet, 9/16-18 Outlet, 2000 to 4000 rpm Max Speed, 1/2 in Shaft Extension
Invoice description:
Pump Gear Hc Var 0.31cu- In/rev 3625psi Mmm Mgpf1051 High Pressure Hydraulic Gear Pump, Variable Fixed/variable, 0.31 Cu-in/rev Displacement, 3625 Psi, 3/4-16 Inlet, 9/16-18 Outlet, 2000 To 4000 Rpm Max Speed, 1/2 In Shaft Extension
Factory Order
MMM Hydraulic Gear Pump, Series: High Pressure, Variable Fixed/Variable, 0.31 cu-in/rev Displacement, 3625 psi Pressure, 2000 to 4000 rpm Maximum, 3/4-16 Inlet, 9/16-18 Outlet, 1/2 in Shaft Extension, Aluminum Housing Material
Features
- Mounting flange is SAE AA-2 bolt
- Straight shaft with 1/8 key
- Filtration 25 micron or better
- Oil viscosity 6 to 200 cSt
- Inlet pressure 12 to 32 psi abs
- -25 to 55 deg oil temperature
- -22 to 55 deg C ambient
Specifications
Displacement0.31 cu-in/rev
Fixed/VariableVariable
Housing MaterialAluminum
Inlet Size3/4-16
Maximum Speed2000 to 4000 rpm
Outlet Size9/16-18
Pressure Rating3625 psi
SeriesHigh Pressure
Shaft Extension1/2 in
Additional Information
Country of OriginUS
