Iscar ISCAR 3309395

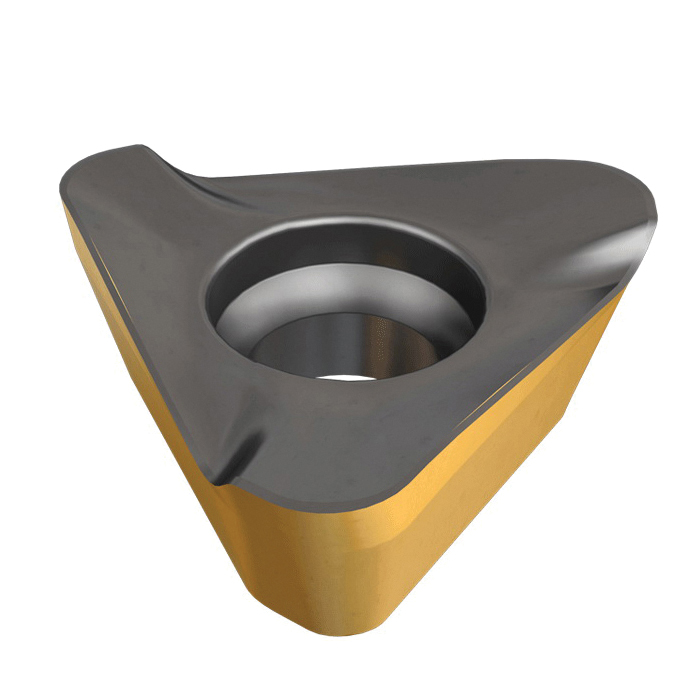

Iscar 3309395 HELI3MILL Milling Insert, ANSI Code: HM390 TDKT 1505PDR, HM390 TDKT Insert, 1505 Insert, Carbide, Manufacturers Grade: IC882, Triangular Shape
Invoice description:
Hm390 Tdkt 1505pdr Ic882
Factory Order
Iscar Milling Insert, Series: HELI3MILL, HM390 TDKT Insert, 1505 Insert, Triangular, 0.449 in Inscribed Circle, 0.23 in Thickness, 0.657 in Length, PDR Chipbreaker, 0.031 in Corner Radius, Manufacturers Grade: IC882, ANSI Code: HM390 TDKT 1505PDR, ISO Code: HM390 TDKT 1505PDR, Carbide, PVD-TiAlN/TiN Coated
Features
- Triangular inserts with 3 helical cutting edges for 90 deg shoulder accuracy
- For general use applications
Specifications
ANSI CodeHM390 TDKT 1505PDR
ChipbreakerPDR
Corner Radius0.031 in
FinishPVD-TiAlN/TiN Coated
Inscribed Circle0.449 in
Insert Size1505
Insert StyleHM390 TDKT
ISO CodeHM390 TDKT 1505PDR
Length0.657 in
Manufacturers GradeIC882
MaterialCarbide
SeriesHELI3MILL
ShapeTriangular
Thickness0.23 in
Additional Information
Country of OriginIL
