MMM MIDM 89138

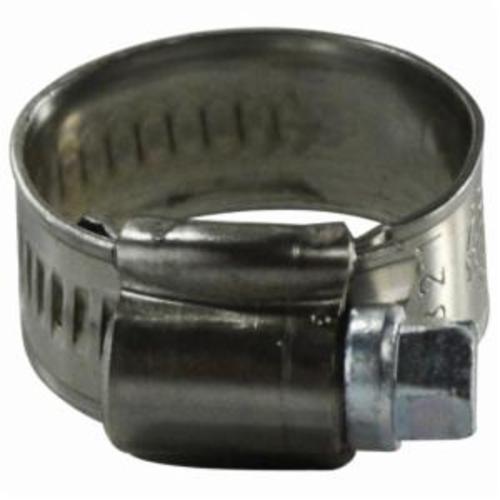

MMM 89138 General Purpose Embossed Hose Worm Gear Clamp, 4-1/8 to 5-7/16 in Clamp, #80 Trade, Stainless Steel Band, 304 Stainless Steel Bolt
Invoice description:
Clamp Gear Worm Hose 4-1 /8 - 5-7/16in Midland Industries 89138 General Purpose Embossed Hose Worm Gear Clamp, 4-1/8 To 5-7/16 In Clamp, #80 Trade, Stainless Steel Band, 304 Stainless Steel Bolt
Factory Order
MMM Hose Worm Gear Clamp, General Purpose Embossed, Clamping Range: 4-1/8 to 5-7/16 in, #80, 304 Grade, Stainless Steel Band, 304 Stainless Steel Bolt
Features
- Features unique one-piece housing, rolled-up band edges and a non-perforated (embossed) band that protects the hose
- For added corrosion resistance, the band in the 12 mm standard is made of Aluzinc which gives three times the protection offered by conventional galvanized steel
- Features high clamping force and high durability torque
- A non-perforated band with rolled-up edges eliminates hose damage while increasing clamping force
- Smooth inside surface
- Even tightening torque for 360 deg seal
- Precision thread pitch for high vibration applications
- Design allows reuse
- Provides a strong seal, tolerates corrosive environment
Specifications
Type General Purpose Embossed
Clamping Range 4-1/8 to 5-7/16 in
Trade Size #80
Grade 304
Additional Information
Standards/ApprovalAISI|SAE J1508
Country of OriginUS
