MMM MIDM 6806NWO64

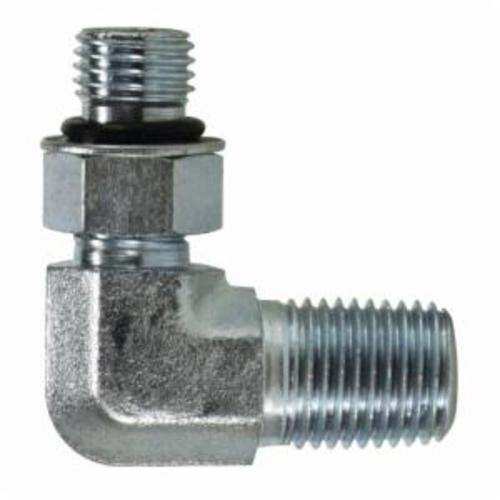

MMM 6806NWO64 Hydraulic Elbow, 9/16-18 x 1/4 in Nominal, Male O-Ring Boss™ x MNPT, Steel

Invoice description: Elbow Hc 9/16-18x1/4in M Ale Orbxmnpt Mmm 6806nwo64 Hydraulic Elbow, 9/16-18 X 1/4 In Nominal, Male O-ring Boss X Mnpt, Steel

UNSPSC: 27121705

Manufacturer PN: 6806NWO64

Factory Order

--Price Unavailable--

MMM Hydraulic Elbow, 9/16-18 x 1/4 in Nominal, Male O-Ring Boss™ x MNPT, 90 deg, 3600 to 4500 psi, Steel

Features
O-ring boss ports (ORB) provide a seal by trapping the fitting's O-ring inside a port cavity
When a fitting is installed into the port, the o-ring is trapped between the fitting body hex or washer and port cavity
Straight fittings include a hex, and sometimes an additional cylindrical shoulder below the hex and above the threads, to trap the o-ring in the port cavity
Elbow and tee fittings require a backup washer and a locknut above the O-ring on the threaded stud to permit a 360 deg orientation of the fitting around the port
