MMM MIDM 6805NWO42

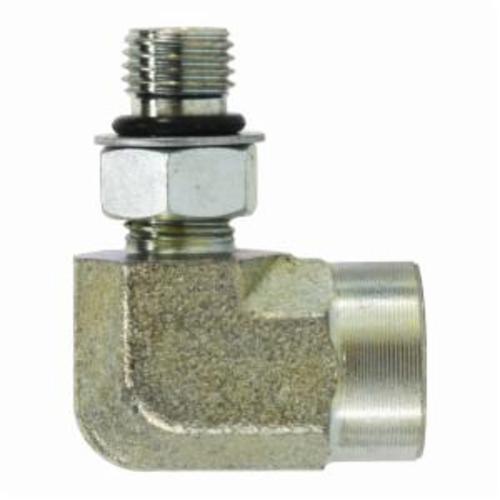

MMM 6805NWO42 Hydraulic Elbow, 7/16-20 x 1/8 in Nominal, Male O-Ring Boss™ x FNPT, Steel
Invoice description:
Elbow Hc 7/16-20x1/8in M Ale Orbxfip Midland Industries 6805nwo42 Hydraulic Elbow, 7/16-20 X 1/8 In Nominal, Male O-ring Boss X Fnpt, Steel
Factory Order
MMM Hydraulic Elbow, 7/16-20 x 1/8 in Nominal, Male O-Ring Boss™ x FNPT, 90 deg, 4500 psi, Steel
Features
- O-ring boss ports (ORB) provide a seal by trapping the fitting's O-ring inside a port cavity
- When a fitting is installed into the port, the o-ring is trapped between the fitting body hex or washer and port cavity
- Straight fittings include a hex, and sometimes an additional cylindrical shoulder below the hex and above the threads, to trap the o-ring in the port cavity
- Elbow and tee fittings require a backup washer and a locknut above the O-ring on the threaded stud to permit a 360 deg orientation of the fitting around the port
Specifications
Nominal Size 7/16-20 x 1/8 in
End Style Male O-Ring Boss™ x FNPT
Angle 90 deg
Additional Information
Country of OriginUS
