MMM MIDM 6803NWO68

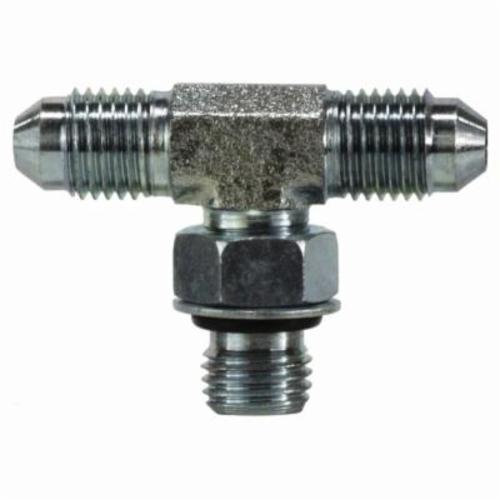

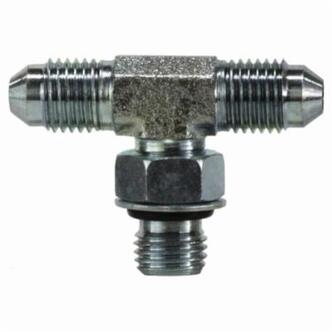

MMM 6803NWO68 Branch Tee, 9/16-18 x 3/4-16 Nominal, Male JIC Flare x Male JIC Flare x Male ORB, Steel
Invoice description:
Tee Br 9/16-18x3/4-16 36 00psi Stl Mmm 6803nwo68 Branch Tee, 9/16-18 X 3/4-16 Nominal, Male Jic Flare X Male Jic Flare X Male Orb, Steel
Factory Order
MMM Branch Tee, 9/16-18 x 3/4-16 Nominal, Male JIC Flare x Male JIC Flare x Male ORB, 3600 psi, Steel
Features
- O-ring boss ports (ORB) provide a seal by trapping the fitting's O-ring inside a port cavity
- When a fitting is installed into the port, the o-ring is trapped between the fitting body hex or washer and port cavity
- Straight fittings include a hex, and sometimes an additional cylindrical shoulder below the hex and above the threads, to trap the o-ring in the port cavity
- Elbow and tee fittings require a backup washer and a locknut above the O-ring on the threaded stud to permit a 360 deg orientation of the fitting around the port
Specifications
Nominal Size 9/16-18 x 3/4-16
End Style Male JIC Flare x Male JIC Flare x Male ORB
Additional Information
Standards/ApprovalSAE 070429|MS 51529
Country of OriginUS
