MMM MIDM 24005

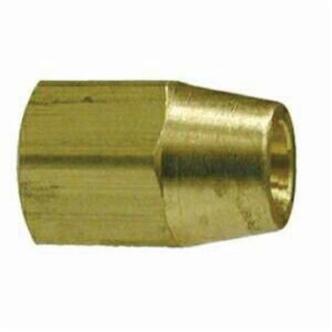

MMM 24005 Long Nut, 3/8 in, Compression, Brass
Invoice description:
Nut Long 3/8in Compressi On 0.62in 200psi Mmm 24005 Long Nut, 3/8 In, Compression, Brass
Factory Order
MMM Long Nut, Nut, 3/8 in Nominal, Compression, 0.62 in Hex, 200 psi, -65 to 250 deg F, Brass, 0.97 in L
Features
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
Specifications
ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
Fitting/Connector Ty Nut
Nominal Size 3/8 in
End Style Compression
Hex Size 0.62 in
Pressure Rating 200 psi
Additional Information
Standards/ApprovalASA|ASME and SAE
Country of OriginUS
Catalog
