MMM MIDM 20130

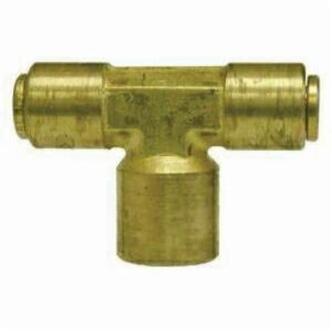

MMM 20130 Branch Tee, 1/4 x 1/4 x 1/8 in Nominal, Push-In x Push-In x FNPTF End Style, Brass
Invoice description:
Tee Br 1/4x1/4x1/8in Brs Midland Industries 20130 Branch Tee, 1/4 X 1/4 X 1/8 In Nominal, Push-in X Push-in X Fnptf End Style, Brass
Factory Order
MMM Branch Tee, Fitting/Connector Type: Tee, 1/4 x 1/4 x 1/8 in Nominal, Push-In x Push-In x FNPTF, -10 to 200 deg F, Brass
Features
- Quick connect, simply push tubing in, no tools, saves up to 75% of assembly time of standard compression fittings
- Quick disconnect, hold two fingers on insert and pull tubing out, no tools required
- Reuseable, connect and disconnect numerous times
- Full flow design, provides up to 60% more flow area than conventional fittings with internal tube supports
- Versatile, BunaN O-rings standard
- Secure tube retention, pulling on tubing only serves to tighten the connection
- Self contained assembly, no loose parts, brass body and insert
- Brass construction, elbows and tees are forged brass
- Choice of convenient swivel of economical stationary elbows and tees
- Straight connectors have interior hex for allen key tightening where space is limited, no need to use a wrench
Specifications
ApplicationFor use up to the maximum working pressure of the plastic tubing used
Fitting/Connector Ty Tee
Nominal Size 1/4 x 1/4 x 1/8 in
End Style Push-In x Push-In x FNPTF
Temperature Rating -10 to 200 deg F
Additional Information
Country of OriginUS
