MMM MIDM 18090

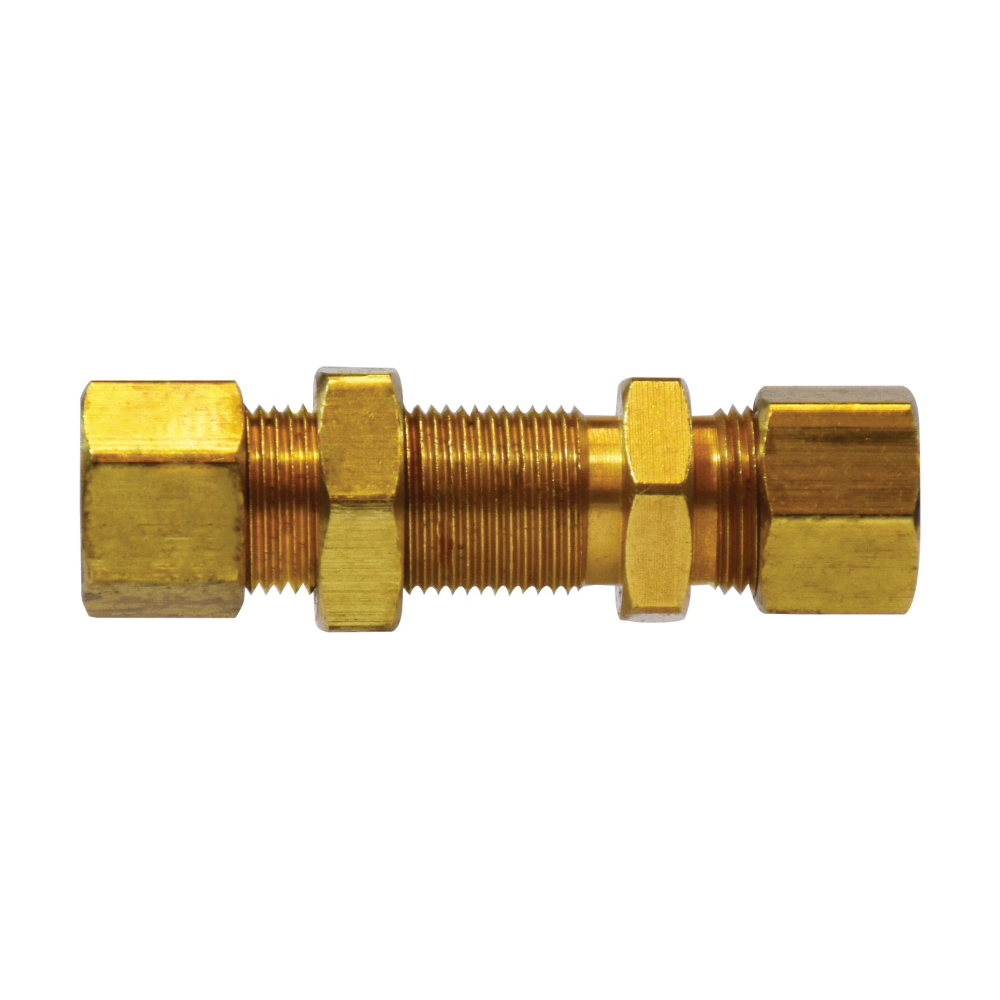

MMM 18090 Bulkhead Union, 3/8 in Nominal, Compression End Style, Brass

Invoice description: Union Bhd Coupling 3/8in Compression Brs Midland Industries 18090 Bulkhead Union, 3/8 In Nominal, Compression End Style, Brass

UNSPSC: 40183109
Manufacturer PN: 18090
$21.96 EA
Factory Order
Estimated to ship in 7 days
QTY:


MMM Bulkhead Union, Coupling Fitting/Connector, 3/8 in Nominal, Compression End Style, 0.68 x 0.68 in Hex, 200 psi Pressure, -65 to 250 deg F, Brass

  • Features

  • Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
  • Fair resistance use long nut when greater vibration resistance is needed
  • /-0.02 tolerance on all dimensions
  • Not recommended for steel tubing

Specifications

ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
Fitting/Connector Ty Coupling
Nominal Size 3/8 in
End Style Compression
Hex Size 0.68 x 0.68 in
Pressure Rating 200 psi

Additional Information

Standards/ApprovalASA|ASME and SAE 060101
Country of OriginUS
