MMM MIDM 10030

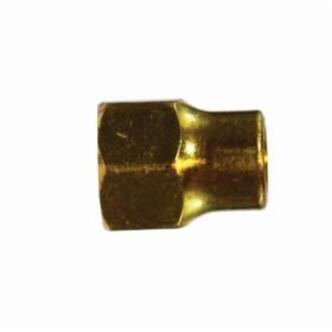

MMM 10030 Long Nut, 3/8 in Nominal, SAE Flare Threaded UNF, CA377 Brass
Invoice description:
Nut Long 3/8in 0.032in W All 0.81in Fgd Midland Industries 10030 Long Nut, 3/8 In Nominal, Sae Flare Threaded Unf, Ca377 Brass
Factory Order
MMM Nut, Long, Fitting/Connector Type: Nut, 3/8 in Nominal, SAE Flare Threaded UNF, 0.032 in Thickness, 0.81 in Hex, 1000 psi, -65 to 250 deg F, CA377 Brass, 1.06 in L, Forged
Features
- Good vibration resistance, use long nut when greater vibration resistance is required
- /- 0.03 tolerance on all dimensions
Specifications
ApplicationLP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared
Type Long
Fitting/Connector Ty Nut
Nominal Size 3/8 in
End Style SAE Flare Threaded UNF
Thickness 0.032 in
Hex Size 0.81 in
Pressure Rating 1000 psi
Additional Information
Standards/ApprovalASA|ASME|MS and SAE 010167
Country of OriginUS
