Harvey Tool HARV DHE0300-C3

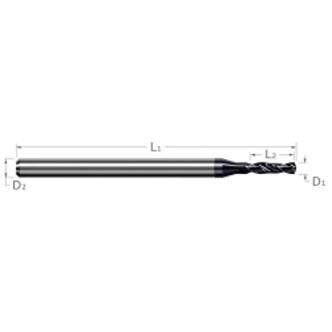

Harvey Tool DHE0300-C3 High Performance Miniature Drill, 0.762 mm Drill - Metric, 0.03 in Drill - Decimal Inch, AlTiN
Invoice description:
Drill .762x3.6 2fl Altin
Manufacturer PN: DHE0300-C3
$67.36 EA
Factory OrderEstimated to ship in 7 days
Harvey Tool, DHE0300-C3, Miniature Drill, High Performance, Metric, 0.762 mm Drill - Metric, 0.03 in Drill - Decimal Inch, 1.96 in Overall Length, 2 Flutes, Helical Flute, 0.141 in Flute Length, 3 mm Shank, Cylindrical Shank, 140 deg Point, Drill Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, AlTiN, Applicable Materials: Cast Iron/Steel/Stainless Steel
Features
- Specialized flute shape for improved chip evacuation and maximum rigidity
- AlTiN coated for improved lubricity and heat resistance
- H6 Shank Tolerance for high precision tool holders
Specifications
Applicable MaterialsCast Iron/Steel/Stainless Steel
Cutting DirectionRight Hand
Cutting Edge MaterialSolid Carbide
Drill Diameter Measurement SystemMetric
Drill Size - Decimal Inch0.03 in
Drill Size - Metric0.762 mm
FinishAlTiN
Flute Length0.141 in
Flute TypeHelical
MaterialSolid Carbide
Number of Flutes2
Overall Length1.96 in
Point Angle140 deg
Point TypeDrill
Shank Size3 mm
Shank TypeCylindrical
TypeHigh Performance
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
Sds
