YG-1 YG1 DGE433050

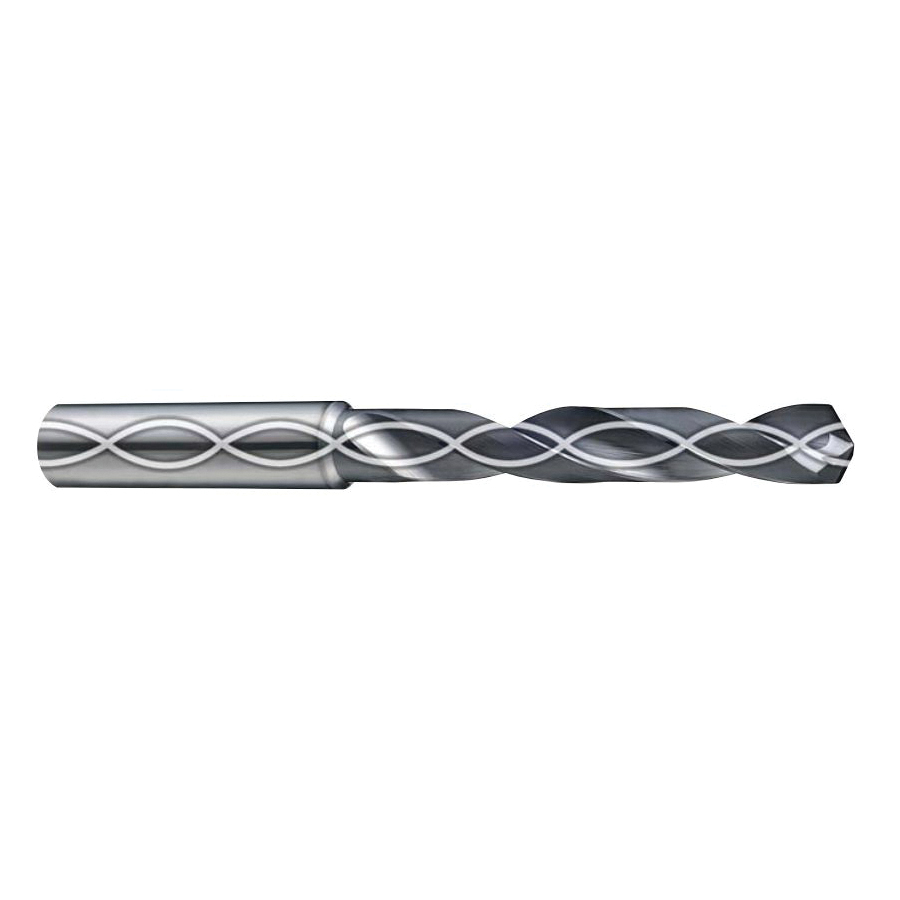

YG-1 DGE433050 Extra Long High Performance Dream Drill With Coolant Holes, 5 mm Drill - Metric, 0.1969 in Drill - Decimal Inch, 82 mm OAL, Micro Grain Carbide, TiAlN Coated
Invoice description:
Drill, 5x6x44x82 Ct 5xd Carb W/coolant
Factory Order
YG-1 High Performance Dream Drill, Extra Long, 5 mm Drill Size - Metric, 0.1969 in Drill Size - Decimal Inch, 82 mm Overall Length, 5XD Cutting Depth, Spiral Flute, 44 mm Flute Length, 6 mm Shank, Straight Shank, 118 deg Point, R-Thinning/Split Point, Right Hand Cutting, Micro Grain Carbide Cutting Edge, Micro Grain Carbide, TiAlN Coated, Applicable Materials: Aluminum
Features
- Wider and deeper flute gullets for maximum chip removal
- Special geometry and smooth coating reduces built up edge and improves finishes
Specifications
ApplicationRemoval and Powerful Drilling
Applicable MaterialsAluminum
Cutting Depth5XD
Cutting DirectionRight Hand
Cutting Edge MaterialMicro Grain Carbide
Drill Size - Decimal Inch0.1969 in
Drill Size - Metric5 mm
FinishTiAlN Coated
Flute Length44 mm
Flute TypeSpiral
MaterialMicro Grain Carbide
Overall Length82 mm
Point Angle118 deg
Point TypeR-Thinning/Split
SeriesDGE43
Shank Size6 mm
Shank TypeStraight
TypeExtra Long
Additional Information
Standards/ApprovalDIN 6537
