Midland Industries MIDM FSO240820

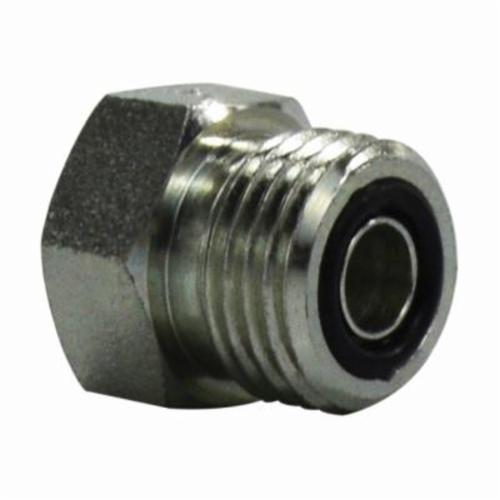

Midland Industries FSO240820 O-Ring Plug, 1-1/4 in x 1-11/16-12 Nominal, ORFS, Steel

Invoice description: Plug O-ring 1-1/4inx1-11 /16-12 Orfs Midland Industries Fso240820 O-ring Plug, 1-1/4 In X 1-11/16-12 Nominal, Orfs, Steel

UNSPSC: 27121700

Manufacturer PN: FSO240820

^$8.60 EA

Factory Order
Estimated to ship in 7 days

Midland Industries O-Ring Plug, 1-1/4 in x 1-11/16-12 Nominal, ORFS, Steel

Features
O-ring face seal fittings include a precision groove in the face of the male fitting
Sealing occurs when an o-ring is trapped in the groove by a smooth flat flange that is clamped against the face with a nut or nut and sleeve
The flat flange may be formed or brazed onto the end of a tube, or is machined on a fitting
Two type SAE grooves are Type A the original style A o-ring has no retaining ledge, the type B groove has a retaining ledge (half dovetail) that improves o-ring retention
The type B style is more commonly found and is a design improvement over the type A
