Midland Industries MIDM 320065

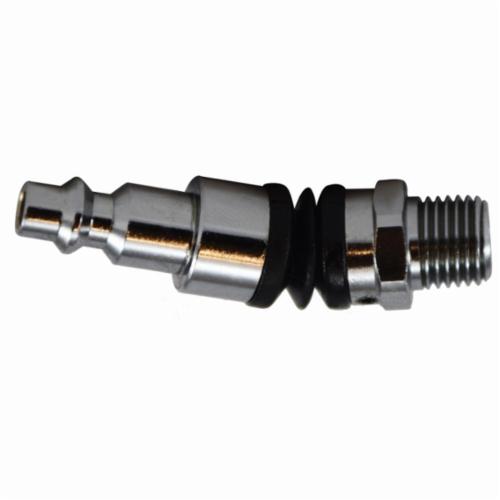

Midland Industries 320065 Industrial Interchange Swivel Plug, 1/4 in Nominal, MNPT, Steel, Import
Invoice description:
Plug Swvl 1/4in Mip 250p Si Stl Midland Industries 320065 Industrial Interchange Swivel Plug, 1/4 In Nominal, Mnpt, Steel, Domestic
Factory Order
Midland Industries Swivel Plug, Industrial Interchange, 1/4 in Nominal, MNPT, 250 psi, -4 to 176 deg F, Steel, Import
Features
- Couplings are widely used to connect compressed air and low pressure fluid lines
- Compact and economical design uses a ball locking mechanism consisting of captive steel balls that engage the locking groove on the mating nipple
- Sliding spring loaded sleeve on the coupler must be manually retracted in order to connect or disconnect the nipple
- Easy to do, but two hands are normally required
- Steel valve, NBR seat, and stainless steel springs
- 360 deg turning
Specifications
ApplicationCompressed Air, Water, Grease, Paint, Limited Vacuum and Limited Gases
Domestic/ImportImport
End StyleMNPT
MaterialSteel
Nominal Size1/4 in
Pressure Rating250 psi
Temperature Rating-4 to 176 deg F
TypeIndustrial Interchange
Additional Information
Country of OriginUS
