Midland Industries MIDM 18212

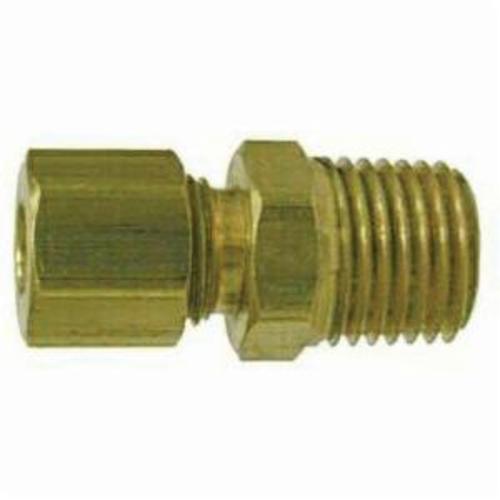

Midland Industries 18212 Tank Adapter, 3/8 x 1/2 in, Compression x MNPTF, Brass

Invoice description: Adapter Tank 3/8x1/2in 0 .87in 200psi Midland Industries 18212 Tank Adapter, 3/8 X 1/2 In, Compression X Mnptf, Brass

UNSPSC: 40183109
Manufacturer PN: 18212
$6.62 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Tank Adapter, Adapter, 3/8 x 1/2 in Nominal, Compression x MNPTF, 0.87 in Hex, 200 psi, -65 to 250 deg F, Brass

  • Features

  • Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
  • Fair resistance use long nut when greater vibration resistance is needed
  • /-0.02 tolerance on all dimensions
  • Not recommended for steel tubing

Specifications

ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
End StyleCompression x MNPTF
Fitting/Connector TypeAdapter
Hex Size0.87 in
MaterialBrass
Nominal Size3/8 x 1/2 in
Pressure Rating200 psi
Temperature Rating-65 to 250 deg F

Additional Information

Standards/ApprovalASA|ASME and SAE
Country of OriginUS
