Midland Industries MIDM 18050

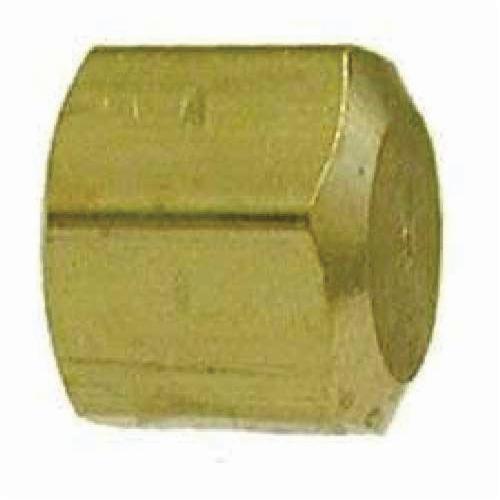

Midland Industries 18050 Tube Cap, 5/8 in, Compression, Brass

Invoice description: Cap Tube 5/8in Compressi On 0.94in 150psi Midland Industries 18050 Tube Cap, 5/8 In, Compression, Brass

UNSPSC: 40183109
Manufacturer PN: 18050
$6.66 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Tube Cap, Cap, 5/8 in Nominal, Compression, 0.94 in Hex, 150 psi, -65 to 250 deg F, Brass, 0.56 in L

  • Features

  • Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
  • Fair resistance use long nut when greater vibration resistance is needed
  • /-0.02 tolerance on all dimensions
  • Not recommended for steel tubing

Specifications

ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
Dimensions0.56 in L
End StyleCompression
Fitting/Connector TypeCap
Hex Size0.94 in
MaterialBrass
Nominal Size5/8 in
Pressure Rating150 psi
Temperature Rating-65 to 250 deg F

Additional Information

Standards/ApprovalASA|ASME and SAE
Country of OriginUS
