Midland Industries MIDM 18048

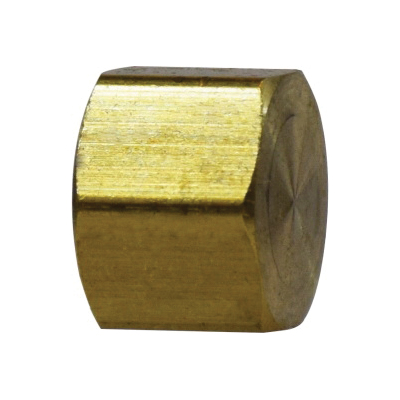

Midland Industries 18048 Tube Cap, 3/8 in Nominal, Compression End Style, Brass
Invoice description:
Cap Tube 3/8in Compressi On 0.62in 200psi Midland Industries 18048 Tube Cap, 3/8 In Nominal, Compression End Style, Brass
Factory Order
Midland Industries Tube Cap, Cap Fitting/Connector, 3/8 in Nominal, Compression End Style, 0.62 in Hex, 200 psi Pressure, -65 to 250 deg F, Brass, 0.4 in L Dimensions
Features
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
Specifications
ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
Dimensions0.4 in L
End StyleCompression
Fitting/Connector TypeCap
Hex Size0.62 in
MaterialBrass
Nominal Size3/8 in
Pressure Rating200 psi
Temperature Rating-65 to 250 deg F
Additional Information
Standards/ApprovalASA|ASME and SAE
Country of OriginTW
