Midland Industries MIDM 12310

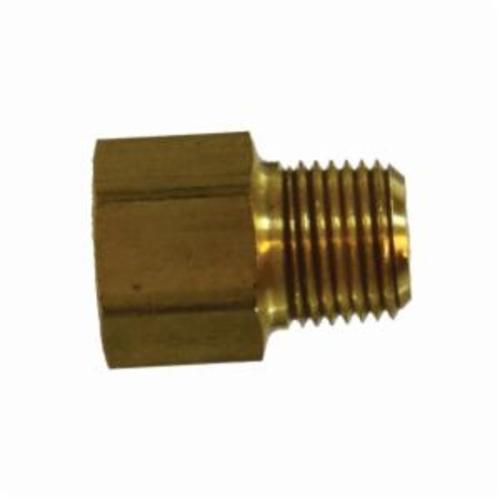

Midland Industries 12310 Restriction Pipe Adapter, 1/8 in Nominal, MNPT x FNPT End Style, CA360 Brass
Invoice description:
Adapter Pipe Restriction Adptr 1/8in Midland Industries 12310 Restriction Pipe Adapter, 1/8 In Nominal, Mnpt X Fnpt End Style, Ca360 Brass
Factory Order
Midland Industries Restriction Pipe Adapter, Adapter Fitting/Connector, 1/8 in Nominal, MNPT x FNPT End Style, 0.03 in Thickness, 1/2 in Hex, 2800 psi Pressure, -65 to 250 deg F, CA360 Brass, 3/4 in L Dimensions
Features
- Excellent vibration resistance
- Very low cost and reusable
- Short nut affords very close tube bends
- Seats and threads are internal and protected
- /- 0.03 tolerance on all dimensions
- Compact, excellent vibration life, short nut affords very close tube bends, steel or brass tube nut
Specifications
ApplicationHydraulic Brake, Power Steering, Fuel Lines and Transmission Cooler Lines, LP and Natural Gas, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared
Dimensions3/4 in L
End StyleMNPT x FNPT
Fitting/Connector TypeAdapter
Hex Size1/2 in
MaterialCA360 Brass
Nominal Size1/8 in
Pressure Rating2800 psi
Temperature Rating-65 to 250 deg F
Thickness0.03 in
Additional Information
Standards/ApprovalASA|ASME|MS and SAE
Country of OriginUS
