Midland Industries MIDM 12230

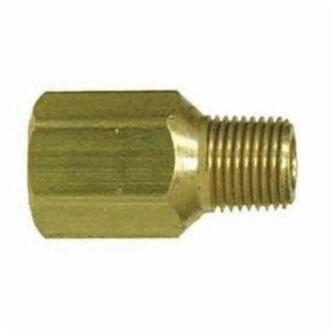

Midland Industries 12230 Adapter, 1/4 x 1/8 in Nominal, MNPT, CA360 Brass
Invoice description:
Adapter 1/4x1/8in Mpt 0. 56in 1400psi Midland Industries 12230 Adapter, 1/4 X 1/8 In Nominal, Mnpt, Ca360 Brass
Factory Order
Midland Industries Adapter, Fitting/Connector Type: Adapter, 1/4 x 1/8 in Nominal, MNPT, 0.56 in Hex, 1400 psi, -65 to 250 deg F, CA360 Brass, 1.06 in L, Forged
Features
- Excellent vibration resistance
- Very low cost and reusable
- Short nut affords very close tube bends
- Seats and threads are internal and protected
- /- 0.03 tolerance on all dimensions
- Compact, excellent vibration life, short nut affords very close tube bends, steel or brass tube nut
- Carburetor to fuel line
Specifications
ApplicationHydraulic Brake, Power Steering, Fuel Lines and Transmission Cooler Lines, LP and Natural Gas, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared
Dimensions1.06 in L
End StyleMNPT
Fitting/Connector TypeAdapter
Hex Size0.56 in
MaterialCA360 Brass
Method of ManufactureForged
Nominal Size1/4 x 1/8 in
Pressure Rating1400 psi
Temperature Rating-65 to 250 deg F
Additional Information
Standards/ApprovalASA|ASME|MS and SAE
Country of OriginUS
