MMM MIDM 12202

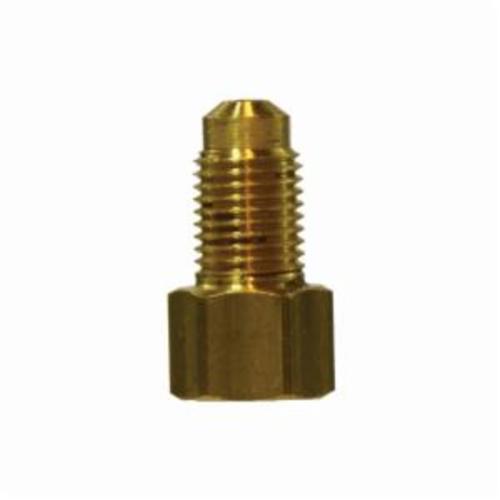

MMM 12202 Adapter, 5/16 x 3/16 in Nominal, SAE Male Flare x Female Inverted Flare, CA360 Brass
Invoice description:
Adapter 5/16x3/16in 0.68 In 1200psi Mmm 12202 Adapter, 5/16 X 3/16 In Nominal, Sae Male Flare X Female Inverted Flare, Ca360 Brass
Factory Order
MMM Adapter, Fitting/Connector Type: Adapter, 5/16 x 3/16 in Nominal, SAE Male Flare x Female Inverted Flare, 0.68 in Hex, 1200 psi, -65 to 250 deg F, CA360 Brass, 0.96 in L
Features
- Excellent vibration resistance
- Very low cost and reusable
- Short nut affords very close tube bends
- Seats and threads are internal and protected
- /- 0.03 tolerance on all dimensions
- Compact, excellent vibration life, short nut affords very close tube bends, steel or brass tube nut
Specifications
ApplicationHydraulic Brake, Power Steering, Fuel Lines and Transmission Cooler Lines, LP and Natural Gas, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared
Dimensions0.96 in L
End StyleSAE Male Flare x Female Inverted Flare
Fitting/Connector TypeAdapter
Hex Size0.68 in
MaterialCA360 Brass
Nominal Size5/16 x 3/16 in
Pressure Rating1200 psi
Temperature Rating-65 to 250 deg F
Additional Information
Standards/ApprovalASA|ASME|MS and SAE
Country of OriginUS
