Midland Industries MIDM 12035

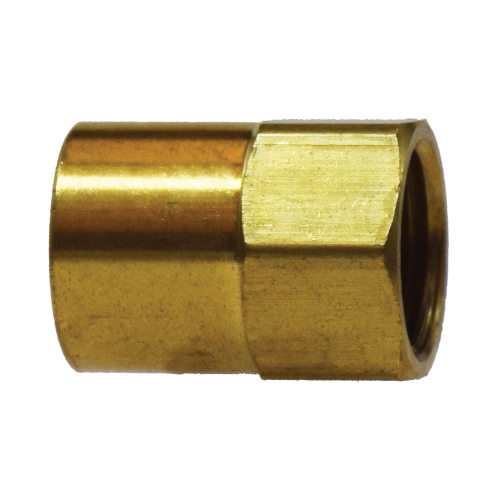

Midland Industries 12035 Adapter, 3/8 x 1/4 in Nominal, SAE Inverted Flare x Female NPTF, CA360 Brass, Import
Invoice description:
Adapter 3/8x1/4in 3/4in 1000psi Midland Industries 12035 Adapter, 3/8 X 1/4 In Nominal, Sae Inverted Flare X Female Nptf, Ca360 Brass, Domestic
Factory Order
Midland Industries Adapter, Fitting/Connector Type: Adapter, 3/8 x 1/4 in Nominal, SAE Inverted Flare x Female NPTF, 3/4 in Hex, 1000 psi, -65 to 250 deg F, CA360 Brass, 1.03 in L, Import
Features
- Excellent vibration resistance
- Very low cost and reusable
- Short nut affords very close tube bends
- Seats and threads are internal and protected
- /- 0.03 tolerance on all dimensions
- Compact, excellent vibration life, short nut affords very close tube bends, steel or brass tube nut
Specifications
ApplicationHydraulic Brake, Power Steering, Fuel Lines and Transmission Cooler Lines, LP and Natural Gas, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared
Dimensions1.03 in L
Domestic/ImportImport
End StyleSAE Inverted Flare x Female NPTF
Fitting/Connector TypeAdapter
Hex Size3/4 in
MaterialCA360 Brass
Nominal Size3/8 x 1/4 in
Pressure Rating1000 psi
Temperature Rating-65 to 250 deg F
Additional Information
Standards/ApprovalASA|ASME|MS and SAE 040103
Country of OriginUS
