MMM MIDM 12025

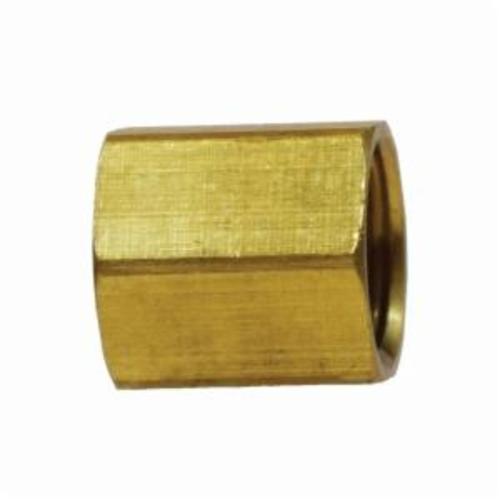

MMM 12025 Union Internal Connector, 5/16 in Nominal, Female Inverted Flare, CA360 Brass, Import
Invoice description:
Connector Intl Un 5/16in 0.032in Wall Mmm 12025 Union Internal Connector, 5/16 In Nominal, Female Inverted Flare, Ca360 Brass, Domestic
Factory Order
MMM Union Internal Connector, Fitting/Connector Type: Connector, 5/16 in Nominal, Female Inverted Flare, 0.032 in Thickness, 0.56 in Hex, 1200 psi, -65 to 250 deg F, CA360 Brass, 0.7 in L, Import
Features
- Excellent vibration resistance
- Very low cost and reusable
- Short nut affords very close tube bends
- Seats and threads are internal and protected
- /- 0.03 tolerance on all dimensions
- Compact, excellent vibration life, short nut affords very close tube bends, steel or brass tube nut
Specifications
ApplicationHydraulic Brake, Power Steering, Fuel Lines and Transmission Cooler Lines, LP and Natural Gas, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared
Dimensions0.7 in L
Domestic/ImportImport
End StyleFemale Inverted Flare
Fitting/Connector TypeConnector
Hex Size0.56 in
MaterialCA360 Brass
Nominal Size5/16 in
Pressure Rating1200 psi
Temperature Rating-65 to 250 deg F
Thickness0.032 in
Additional Information
Standards/ApprovalASA|ASME|MS and SAE 040101
Country of OriginUS
