Midland Industries MIDM 12010

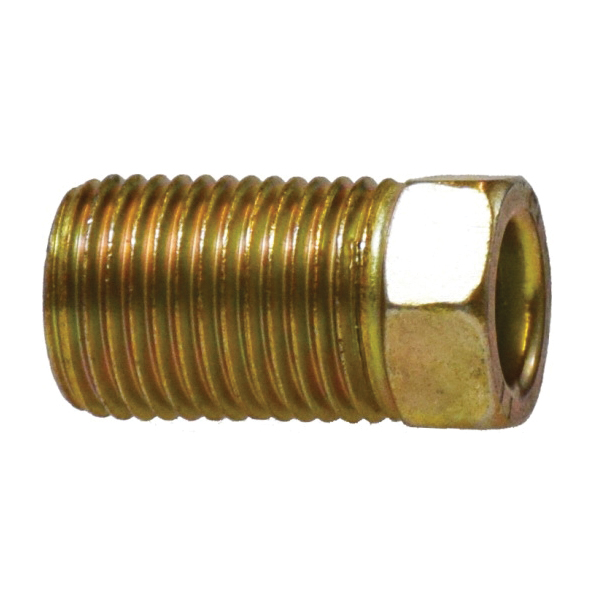

Midland Industries 12010 Long Nut, 1/4 in Nominal, Steel
Invoice description:
Nut Long 1/4in 0.03in Wa Ll 0.43in Stl Midland Industries 12010 Long Nut, 1/4 In Nominal, Steel
Factory Order
Midland Industries Nut, Long, Fitting/Connector Type: Nut, 1/4 in Nominal, 0.03 in Thickness, 0.43 in Hex, 1400 psi, -65 to 250 deg F, Steel, 0.81 in L
Features
- Excellent vibration resistance
- Very low cost and reusable
- Short nut affords very close tube bends
- Seats and threads are internal and protected
- /- 0.03 tolerance on all dimensions
- Compact, excellent vibration life, short nut affords very close tube bends, steel or brass tube nut
- For domestic lines
Specifications
ApplicationHydraulic Brake, Power Steering, Fuel Lines and Transmission Cooler Lines, LP and Natural Gas, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared
Dimensions0.81 in L
Fitting/Connector TypeNut
Hex Size0.43 in
MaterialSteel
Nominal Size1/4 in
Pressure Rating1400 psi
Temperature Rating-65 to 250 deg F
Thickness0.03 in
TypeLong
Additional Information
Standards/ApprovalASA|ASME|MS and SAE
Country of OriginUS
