Midland Industries MIDM 10493

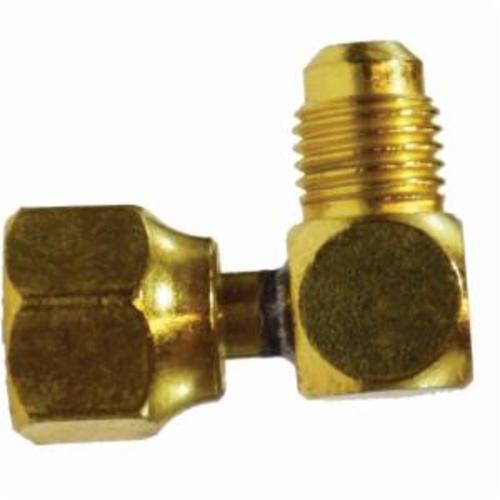

Midland Industries 10493 90 deg Swivel Elbow, 1/4 in Nominal, SAE Male Flare x Female Flare End Style, CA377 Brass
Invoice description:
Elbow Swvl 90 Deg Elb 1/ 4in Ca377 Brs Midland Industries 10493 90 Deg Swivel Elbow, 1/4 In Nominal, Sae Male Flare X Female Flare End Style, Ca377 Brass
Factory Order
Midland Industries Swivel Elbow, 90 deg Elbow Fitting/Connector, 1/4 in Nominal, SAE Male Flare x Female Flare End Style, 0.03 in Thickness, 0.563 in Hex, 1400 psi Pressure, -65 to 250 deg F, CA377 Brass, 0.93 in L x 0.86 in W Dimensions, Forged Method of Manufacture
Features
- Good vibration resistance, use long nut when greater vibration resistance is required
- /- 0.03 tolerance on all dimensions
Specifications
ApplicationLP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared
Dimensions0.93 in L x 0.86 in W
End StyleSAE Male Flare x Female Flare
Fitting/Connector Type90 deg Elbow
Hex Size0.563 in
MaterialCA377 Brass
Method of ManufactureForged
Nominal Size1/4 in
Pressure Rating1400 psi
Temperature Rating-65 to 250 deg F
Thickness0.03 in
Additional Information
Standards/ApprovalASA|ASME/MS and SAE
Country of OriginUS
