Midland Industries MIDM 10463

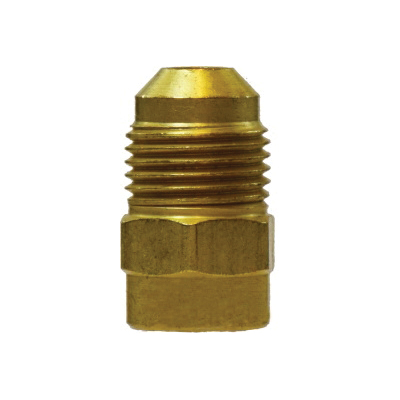

Midland Industries 10463 Reducer, 3/8 x 1/4 in Nominal, SAE Male Flare x Female Flare, Brass, Import
Invoice description:
Reducer Flare 3/8x1/4in 0.62in Brs Midland Industries 10463 Reducer, 3/8 X 1/4 In Nominal, Sae Male Flare X Female Flare, Brass, Domestic
Factory Order
Midland Industries Reducer, Fitting/Connector Type: Reducer, 3/8 x 1/4 in Nominal, SAE Male Flare x Female Flare, 0.62 in Hex, -65 to 250 deg F, Brass, 1.12 in L, Import
Features
- Good vibration resistance, use long nut when greater vibration resistance is required
- /- 0.03 tolerance on all dimensions
Specifications
ApplicationLP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared
Dimensions1.12 in L
Domestic/ImportImport
End StyleSAE Male Flare x Female Flare
Fitting/Connector TypeReducer
Hex Size0.62 in
MaterialBrass
Nominal Size3/8 x 1/4 in
Temperature Rating-65 to 250 deg F
Additional Information
Standards/ApprovalASA|ASME|MS and SAE 010105
Country of OriginUS
