Midland Industries MIDM 10315

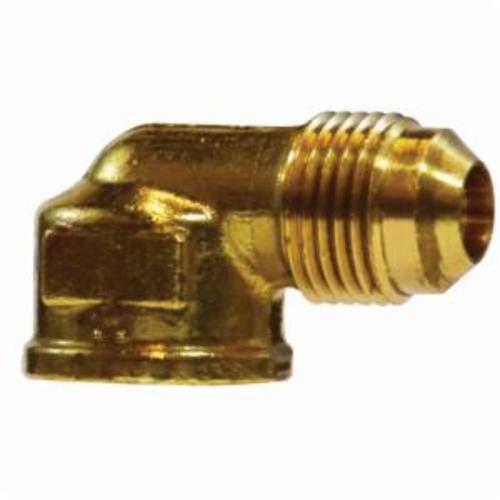

Midland Industries 10315 90 deg Elbow, 1/4 x 3/8 in Nominal, SAE Male Flare x Female NPTF End Style, CA377 Brass

Invoice description: Elbow 90 Deg Elb 1/4 X 3 /8in Ca377 Brs Midland Industries 10315 90 Deg Elbow, 1/4 X 3/8 In Nominal, Sae Male Flare X Female Nptf End Style, Ca377 Brass

UNSPSC: 40183109

Manufacturer PN: 10315

^$13.03 EA

Factory Order
Estimated to ship in 7 days

enlarge

Product Overview

Midland Industries Elbow, 90 deg Elbow Fitting/Connector, 1/4 x 3/8 in Nominal, SAE Male Flare x Female NPTF End Style, 0.03 in Thickness, 1400 psi Pressure, -65 to 250 deg F, CA377 Brass, 1.03 in L x 0.57 in W Dimensions, Forged Method of Manufacture

Features
Good vibration resistance, use long nut when greater vibration resistance is required
/- 0.03 tolerance on all dimensions
0.81 in body

Specifications

ApplicationLP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared

Dimensions1.03 in L x 0.57 in W

End StyleSAE Male Flare x Female NPTF

Fitting/Connector Type90 deg Elbow

MaterialCA377 Brass

Method of ManufactureForged

Nominal Size1/4 x 3/8 in

Pressure Rating1400 psi

Temperature Rating-65 to 250 deg F

Thickness0.03 in
