MMM MIDM 10283B

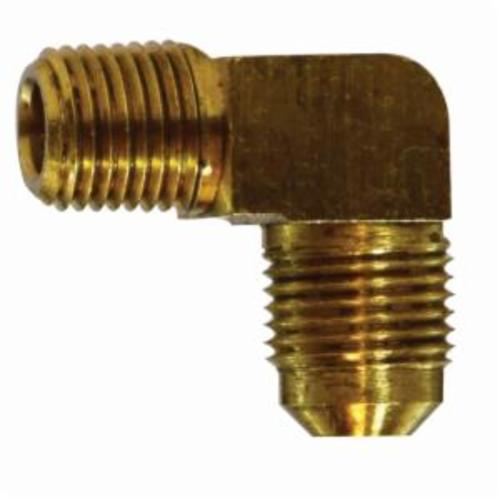

MMM 10283B 90 deg Elbow, 1/8 in Nominal, SAE Male Flare x Male NPTF End Style, CA360 Brass
Invoice description:
Elbow 90 Deg Elb 1/8in C A360 Brs 0.03in Mmm 10283b 90 Deg Elbow, 1/8 In Nominal, Sae Male Flare X Male Nptf End Style, Ca360 Brass
Factory Order
MMM Elbow, 90 deg Elbow Fitting/Connector, 1/8 in Nominal, SAE Male Flare x Male NPTF End Style, 0.03 in Thickness, 2800 psi Pressure, -65 to 250 deg F, CA360 Brass, 0.62 in L x 0.69 in W Dimensions, Forged Method of Manufacture
Features
- Good vibration resistance, use long nut when greater vibration resistance is required
- /- 0.03 tolerance on all dimensions
- 0.43 in body
- Barstock
Specifications
ApplicationLP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared
Dimensions0.62 in L x 0.69 in W
End StyleSAE Male Flare x Male NPTF
Fitting/Connector Type90 deg Elbow
MaterialCA360 Brass
Method of ManufactureForged
Nominal Size1/8 in
Pressure Rating2800 psi
Temperature Rating-65 to 250 deg F
Thickness0.03 in
Additional Information
Standards/ApprovalASA|ASME|MS and SAE 010202
Country of OriginUS
