GARR GARR 98752

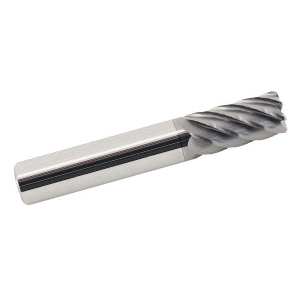

GARR 98752 TMR High Performance Non-Center Cutting Single End Mill With Neck, 16 mm Dia Cutter, 2 mm Corner Radius, 22 mm Length of Cut, 7 Flutes, 16 mm Dia Shank, 150 mm OAL, AlCrN Coated
Invoice description:
Em 16x22locx16x150mm Cr2 7fl Alcrn Nocc Nk Hp
Factory Order
GARR End Mill, High Performance Non-Center Cutting Single End, Series: TMR, 16 mm Diameter Cutter, 2 mm Corner Radius, 150 mm Overall Length, 22 mm Length of Cut, 7 Flutes, Spiral Flute, 16 mm Shank Diameter, Right Hand Cutting Direction, 38 deg Helix Angle, Round Shank, Submicron Grain Solid Carbide, AlCrN Coated
Features
- Finisher for titanium
- Multiple flutes for increased feed rates
- Odd number of flutes to naturally break up harmonics
- Effective for trochoidal milling
- Up to 5% radial (ap) engagement
- Can be used to finish most steels under 40RC, as well as aluminum
- Conventional grind for better finish cutting and less push off
- Engineered for titanium
- Regrindable
- Corner radius tolerance +/-0.001 in (+/-0.025 mm)
Specifications
ApplicationUsed to finish most steels under 40Rc, as well as aluminum
Corner Radius2 mm
Cutter Diameter16 mm
Cutting DirectionRight Hand
FinishAlCrN Coated
Flute TypeSpiral
Helix Angle38 deg
Length of Cut22 mm
MaterialSubmicron Grain Solid Carbide
Number of Flutes7
Overall Length150 mm
SeriesTMR
Shank Diameter16 mm
Shank TypeRound
TypeHigh Performance Non-Center Cutting Single End
Additional Information
Country of OriginUS
Specification Sheet
