GARR GARR 98130

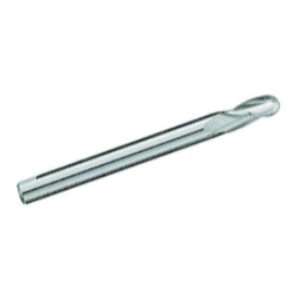

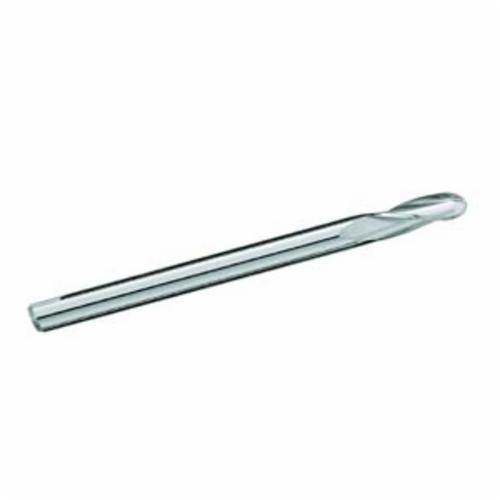

GARR 98130 743M Ball End Center Cutting Extra Length Ball End Mill, 6 mm Dia Cutter, 38 mm Length of Cut, 3 Flutes, 6 mm Dia Shank, 150 mm OAL, Uncoated
Invoice description:
Bem 6x38locx6x150mm 3fl N/c Xl
Factory Order
GARR Ball End Mill, Center Cutting Extra Length Single End, Series: 743M, 6 mm Diameter Cutter, 150 mm Overall Length, 38 mm Length of Cut, 3 Flutes, Spiral Flute, 6 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, 112 mm Shank Length, Solid Submicron Grain Carbide, Uncoated
Features
- Extended reach
- Can be modified with a neck
- Extremely versatile
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
Specifications
Cutter Diameter6 mm
Cutting DirectionRight Hand
FinishUncoated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut38 mm
MaterialSolid Submicron Carbide
Number of Flutes3
Overall Length150 mm
Series743M
Shank Diameter6 mm
Shank Length112 mm
TypeBall End Center Cutting Extra Length
Additional Information
Country of OriginUS
Specification Sheet
