GARR GARR 86704

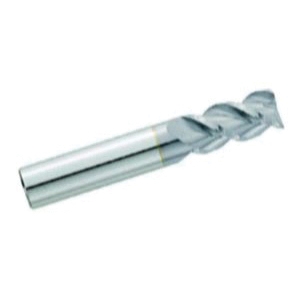

GARR 86704 253MC Center Cutting Single End Square End High Performance End Mill, 1 in Dia Cutter, 1-1/8 in Length of Cut, 3 Flutes, 1 in Dia Shank, 3 in OAL, TiCN Coated
Invoice description:
Em 1x1-1/8locx1x3 3fl Ticn Hp
Factory Order
GARR High Performance End Mill, Center Cutting Single End Square End, Series: 253MC, 1 in Diameter Cutter, 3 in Overall Length, 1-1/8 in Length of Cut, 3 Flutes, Spiral Flute, 1 in Shank Diameter, Right Hand Cutting Direction, 50 deg Helix Angle, 1-7/8 in Shank Length, Solid Submicron Carbide, TiCN Coated
Features
- High performance milling in aluminum and 303 stainless steel
- Rigid work holding, machine stability and part integrity are critical
- Improved abrasion resistance and lubricity
- Up to 25% faster than uncoated
- Slots aluminum and stainless steel at an axial depth of 25% of dia
- Sharp corners
Specifications
Cutter Diameter1 in
Cutting DirectionRight Hand
FinishTiCN Coated
Flute TypeSpiral
Helix Angle50 deg
Length of Cut1-1/8 in
MaterialSolid Submicron Carbide
Number of Flutes3
Overall Length3 in
Series253MC
Shank Diameter1 in
Shank Length1-7/8 in
TypeCenter Cutting Single End Square End
Additional Information
Country of OriginUS
Specification Sheet
