GARR GARR 60108

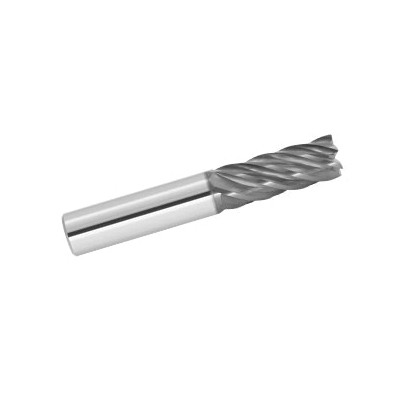

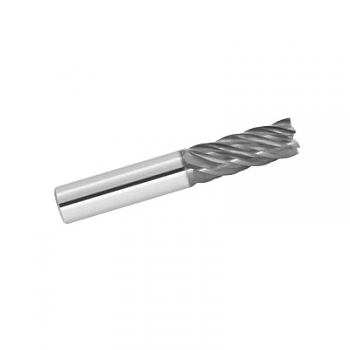

GARR 60108 VRX-6 VS6 Center Cutting High Performance Square End Mill, 3/8 in Dia Cutter, 7/8 in Length of Cut, 6 Flutes, 3/8 in Dia Shank, 2-1/2 in OAL, AlTiN Coated
Invoice description:
Em 3/8x7/8locx3/8x2-1/2 6fl Altin Hp
Factory Order
GARR Square End Mill, Center Cutting High Performance, Series: VRX-6 VS6, 3/8 in Diameter Cutter, 2-1/2 in Overall Length, 7/8 in Length of Cut, 6 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 37 deg Helix Angle, Solid Submicron Grain Carbide, AlTiN Coated
Features
- 6-flutes for better finish and longer tool life
- Reduces vibration for more aggressive machining resulting in less cycle times and greater productivity
- Staggered flute geometry
- Up to 15% radial stepovers
- Up to 4XD axial depths
- Recommended for inconel, pH materials, titanium and tool steel
Specifications
ApplicationTrochoidal/Dynamic Milling
Cutter Diameter3/8 in
Cutting DirectionRight Hand
FinishAlTiN Coated
Flute TypeSpiral
Helix Angle37 deg
Length of Cut7/8 in
MaterialSolid Submicron Grain Carbide
Number of Flutes6
Overall Length2-1/2 in
SeriesVRX-6 VS6
Shank Diameter3/8 in
TypeCenter Cutting High Performance
Additional Information
Standards/ApprovalPROP65: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov
Country of OriginUS
