GARR GARR 50598

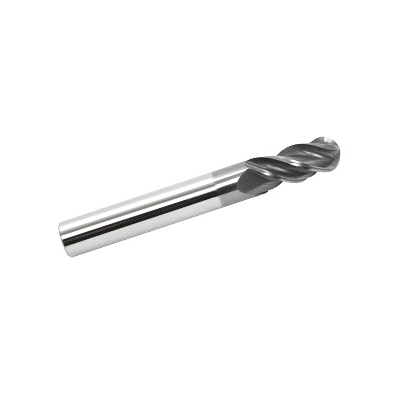

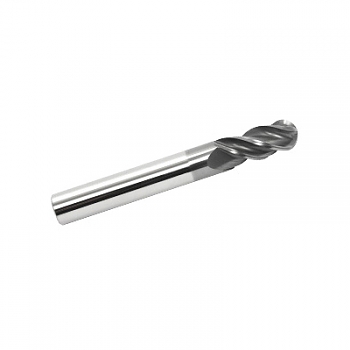

GARR 50598 V4B Center Cutting High Performance Variable Helix Ball End Mill, 1/2 in Dia Cutter, 5/8 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 6 in OAL, AlCrN Coated
Invoice description:
Bem 1/2x5/8locx1/2x6 4fl Alcrn Var Hp
Factory Order
GARR Ball End Mill, Center Cutting High Performance Variable Helix, Series: V4B, 1/2 in Diameter Cutter, 6 in Overall Length, 5/8 in Length of Cut, 4 Flutes, Spiral Flute, 1/2 in Shank Diameter, Right Hand Cutting Direction, Plain Shank, Solid Submicron Grain Carbide, AlCrN Coated
Features
- Special edge prep enhances tool life by 20%
- Minimizes burr on part
- Helix geometry varies over length of flutes
- Variable flute design helps with chip evacuation
- Variable rake aids in chip formation
- +0.000 to 0.001 in ball radius tolerance
- For titanium, inconel and steel
Specifications
ApplicationTrochoidal/Dynamic Milling
Cutter Diameter1/2 in
Cutting DirectionRight Hand
FinishAlCrN Coated
Flute TypeSpiral
Length of Cut5/8 in
MaterialSolid Submicron Grain Carbide
Number of Flutes4
Overall Length6 in
SeriesV4B
Shank Diameter1/2 in
Shank TypePlain
TypeCenter Cutting High Performance Variable Helix
Additional Information
Standards/ApprovalPROP65: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov
Country of OriginUS
