Simpson Strong-Tie SIMS STB2-75100

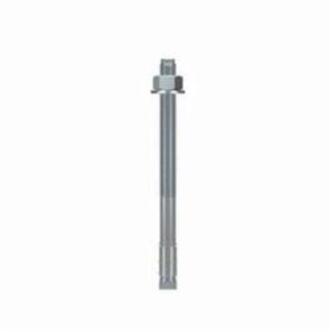

Simpson Strong-Tie STB2-75100 Strong-Bolt 2 Wedge Anchor, 3/4 in Dia, 10 in OAL, 6 in L Thread, Carbon Steel, Zinc Plated
Invoice description:
Anchor Wedge 3/4x10 Stro Ng Bolt 2, 20/bx
UPC: 707392682806
UNSPSC:
31162102
Manufacturer PN: STB2-75100
$58.96 BX
Factory OrderEstimated to ship in 7 days
Simpson Strong-Tie Wedge Anchor, Series: Strong-Bolt 2, 3/4 in Dia, 10 in Overall Length, 6 in Thread Length, Carbon Steel, Zinc Plated, 4-1/8 in Minimum Embedment Depth, 3/4 in Drill, 3/4-10, UNS, 1-1/8 in Head, 8-3/4 in Maximum Work Thickness, 110000 psi Tensile
Features
- Tri-segmented clip, each segment adjusts independently, increasing follow-up expansion, should the hole increase in size as a result of a crack
- Dual embossments on each clip segment, enable the clip to undercut into the concrete, thereby increasing follow-up expansion should a crack occur
- Standard (ANSI) fractional anchor, The Strong-Bolt 2 is sized to fit most fixtures and it installs with common drill bit sizes and tools
- Standard fractional sizes fits standard fixtures and installs with common drill bit and tool sizes
- Carbon steel stud with special alloy clip
- Carbon steel ASTM A563 grade A nut
- Carbon steel ASTM F844 washer
- Carbon steel ASTM A568 clip
- 7/8 in Dia baseplate clearance hole
- 150 ft-lb installation torque
Specifications
ApplicationFor optimal performance in cracked and uncracked concrete as well as uncracked masonry
Diameter3/4 in
Drill Size3/4 in
FinishZinc Plated
Head Size1-1/8 in
MaterialCarbon Steel
Maximum Work Thickness8-3/4 in
Minimum Embedment Depth4-1/8 in
Overall Length10 in
SeriesStrong-Bolt 2
Tensile Strength110000 psi
Thread Length6 in
Thread Size3/4-10
Thread TypeUNS
Additional Information
Standards/ApprovalASTM B633|Class SC 1|Type III|Florida Statewide Pr
Country of OriginCN
Technical Bulletin
