GARR GARR 36097

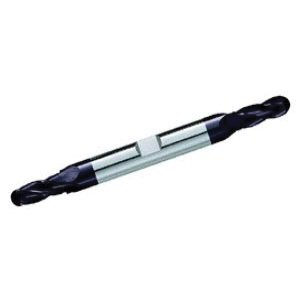

GARR 36097 Ball Nose Center Cutting Double End End Mill, 3/8 in Dia Cutter, 3/4 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 4 in OAL, TiAlN Coated
Invoice description:
Bem 3/8x3/4locx3/8x4 4fl Tialn Dbl
Factory Order
GARR End Mill, Ball Nose Center Cutting Double End, Series: 535MA, 3/8 in Diameter Cutter, 4 in Overall Length, 3/4 in Length of Cut, 4 Flutes, Helix Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, Submicron Solid Carbide, TiAlN Coated
Features
- Up to 40% faster than uncoated
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
- For strength and adaptability when converting from high speed steel
Specifications
ApplicationDry or Semi-Dry Machining
Cutter Diameter3/8 in
Cutting DirectionRight Hand
FinishTiAlN Coated
Flute TypeHelix
Helix Angle30 deg
Length of Cut3/4 in
MaterialSubmicron Solid Carbide
Number of Flutes4
Overall Length4 in
Series535MA
Shank Diameter3/8 in
Shank TypeWeldon Flat
TypeBall Nose Center Cutting Double End
Additional Information
Country of OriginUS
