GARR GARR 36017

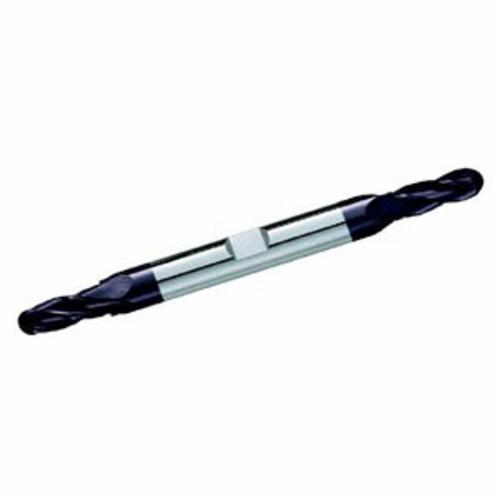

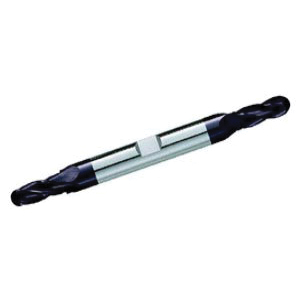

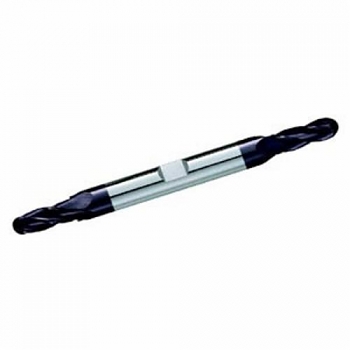

GARR 36017 535MA Ball End Center Cutting Double End Standard Length End Mill, 1/8 in Dia Cutter, 3/8 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 3 in OAL, TiALN Coated
Invoice description:
Bem 1/8x3/8locx3/8x3 4fl Tialn Dbl
Factory Order
GARR End Mill, Ball End Center Cutting Double End Standard Length, Series: 535MA, 1/8 in Diameter Cutter, 3 in Overall Length, 3/8 in Length of Cut, 4 Flutes, 3/8 in Shank Diameter, 30 deg Helix Angle, Weldon Flat Shank, 2-5/8 in Shank Length, Solid Submicron Carbide, TiALN Coated
Features
- Up to 40% faster than uncoated
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
- For strength and adaptability when converting from high speed steel
Specifications
ApplicationDry or Semi-Dry Machining
Cutter Diameter1/8 in
FinishTiALN Coated
Helix Angle30 deg
Length of Cut3/8 in
MaterialSolid Submicron Carbide
Number of Flutes4
Overall Length3 in
Series535MA
Shank Diameter3/8 in
Shank Length2-5/8 in
Shank TypeWeldon Flat
TypeBall End Center Cutting Double End Standard Length
Additional Information
Country of OriginUS
Specification Sheet
