GARR GARR 35030

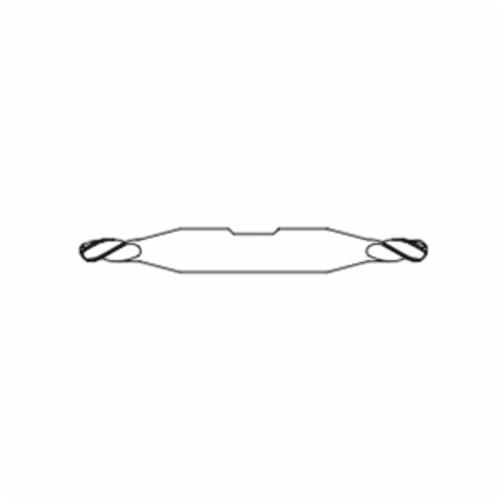

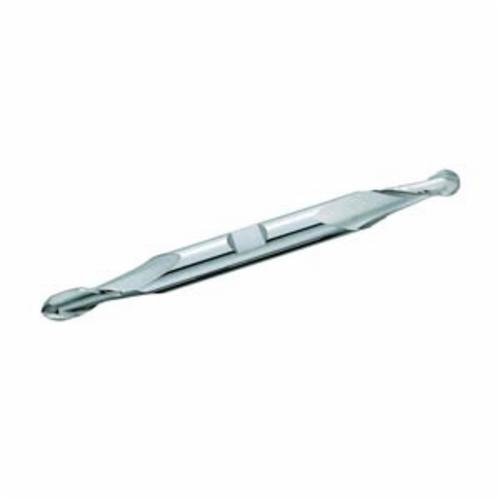

GARR 35030 Ball End Center Cutting Double End Standard Length End Mill, 3/16 in Dia Cutter, 1/2 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 3 in OAL, Uncoated

Invoice description: Bem 3/16x1/2locx3/8x3 2fl N/c Dbl

UNSPSC: 23242511
Manufacturer PN: 35030
$56.02 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball End Center Cutting Double End Standard Length, Series: 525M, 3/16 in Diameter Cutter, 3 in Overall Length, 1/2 in Length of Cut, 2 Flutes, 3/8 in Shank Diameter, 30 deg Helix Angle, Weldon Flat Shank, 2-1/2 in Shank Length, Solid Submicron Carbide, Uncoated

  • Features

  • For strength and adaptability when converting from high speed steel
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

Cutter Diameter3/16 in
FinishUncoated
Helix Angle30 deg
Length of Cut1/2 in
MaterialSolid Submicron Carbide
Number of Flutes2
Overall Length3 in
Series525M
Shank Diameter3/8 in
Shank Length2-1/2 in
Shank TypeWeldon Flat
TypeBall End Center Cutting Double End Standard Length

Additional Information

Country of OriginUS
