GARR GARR 32627

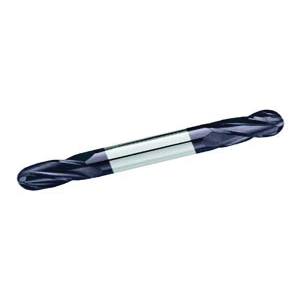

GARR 32627 550MA Ball End Center Cutting Double End Ball End Mill, 8 mm Dia Cutter, 19 mm Length of Cut, 4 Flutes, 8 mm Dia Shank, 88 mm OAL, TiAlN Coated
Invoice description:
Bem 8x19locx8x88mm 4fl Tialn Dbl
Factory Order
GARR Ball End Mill, Center Cutting Double End, Series: 550MA, 8 mm Diameter Cutter, 88 mm Overall Length, 19 mm Length of Cut, 4 Flutes, Spiral Flute, 8 mm Shank Diameter, 30 deg Helix Angle, Solid Submicron Grain Carbide, TiAlN Coated
Features
- Up to 40% faster than uncoated
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
Specifications
ApplicationDry or Semi-Dry Machining
Cutter Diameter8 mm
FinishTiAlN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut19 mm
MaterialSubmicron Solid Carbide
Number of Flutes4
Overall Length88 mm
Series550MA
Shank Diameter8 mm
TypeBall End Center Cutting Double End
Additional Information
Country of OriginUS
