GARR GARR 32097

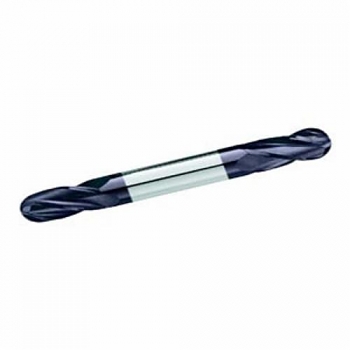

GARR 32097 530MA Ball End Center Cutting Double End Standard Length End Mill, 1/4 in Dia Cutter, 5/8 in Length of Cut, 4 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, TiALN Coated
Invoice description:
Bem 1/4x5/8locx1/4x2-1/2 4fl Tialn Dbl
Factory Order
GARR End Mill, Ball End Center Cutting Double End Standard Length, Series: 530MA, 1/4 in Cutter Dia, 2-1/2 in Overall Length, 5/8 in Length of Cut, 4 Flutes, Spiral Flute, 1/4 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, 1-7/8 in Shank Length, Solid Submicron Carbide, TiALN Coated
Features
- Up to 40% faster than uncoated
- Extremely versatile
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
Specifications
ApplicationDry or Semi-Dry Machining
Cutter Diameter1/4 in
Cutting DirectionRight Hand
FinishTiALN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut5/8 in
MaterialSolid Submicron Carbide
Number of Flutes4
Overall Length2-1/2 in
Series530MA
Shank Diameter1/4 in
Shank Length1-7/8 in
TypeBall End Center Cutting Double End Standard Length
Additional Information
Country of OriginUS
Specification Sheet
