GARR GARR 32090

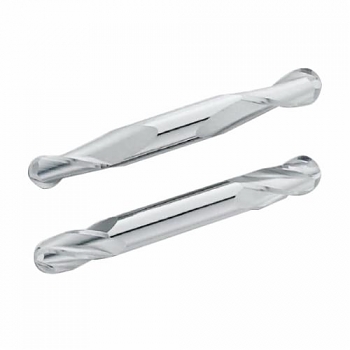

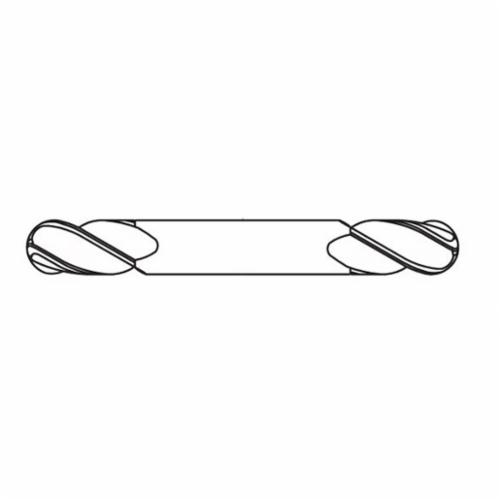

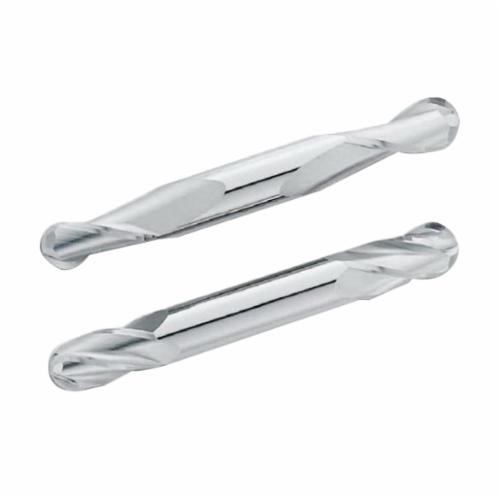

GARR 32090 530M Ball End Center Cutting Double End Standard Length Ball End Mill, 1/4 in Dia Cutter, 5/8 in Length of Cut, 4 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, Uncoated

Invoice description: Bem 1/4x5/8locx1/4x2-1/2 4fl N/c Dbl

UNSPSC: 23242511
Manufacturer PN: 32090
$36.14 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR Ball End Mill, Center Cutting Double End Standard Length, Series: 530M, 1/4 in Diameter Cutter, 2-1/2 in Overall Length, 5/8 in Length of Cut, 4 Flutes, Spiral Flute, 1/4 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, 1-7/8 in Shank Length, Solid Submicron Grain Carbide, Uncoated

  • Features

  • Extremely versatile
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

Cutter Diameter1/4 in
Cutting DirectionRight Hand
FinishUncoated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut5/8 in
MaterialSolid Submicron Carbide
Number of Flutes4
Overall Length2-1/2 in
Series530M
Shank Diameter1/4 in
Shank Length1-7/8 in
TypeBall End Center Cutting Double End Standard Length

Additional Information

Country of OriginUS
