Iscar ISCAR 5622021

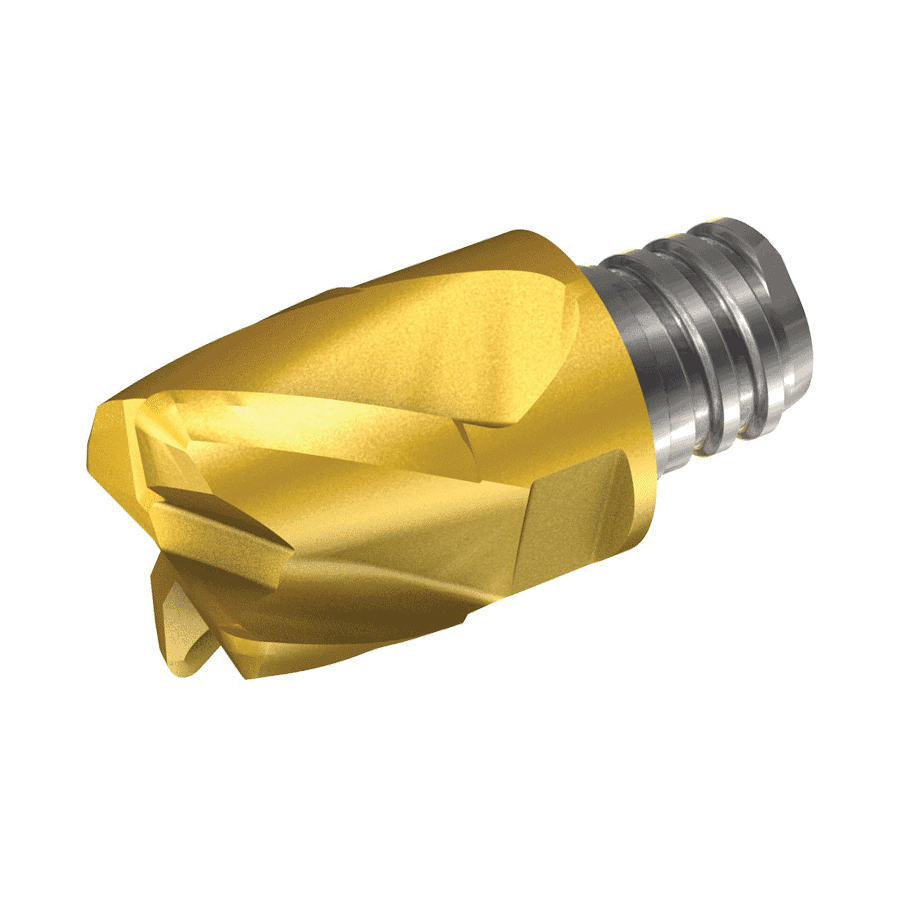

Iscar 5622021 MULTI-MASTER Interchangeable End Mill Head, ANSI Code: MM EC200A15R0.5-4T12, Solid Carbide, 0.5 mm Corner Radius, Manufacturers Grade: IC908, 4 Flutes
Invoice description:
Mm Ec200a15r0.5-4t12 908
Factory Order
Iscar End Mill Head, Interchangeable, Series: MULTI-MASTER, 20 mm Cutting Dia, 25.5 mm Maximum Depth of Cut, 4 Flutes, 0.5 mm Corner Radius, Manufacturers Grade: IC908, ANSI Code: MM EC200A15R0.5-4T12, ISO Code: MM EC-4, Solid Carbide
Features
- Interchangeable 4-flute solid carbide end mill heads with 30 deg and 45 deg helix and various corner radii
Specifications
ApplicationMilling
ANSI CodeMM EC200A15R0.5-4T12
Corner Radius0.5 mm
Cutting Diameter20 mm
ISO CodeMM EC-4
Manufacturers GradeIC908
MaterialSolid Carbide
Maximum Depth of Cut25.5 mm
Number of Flutes4
SeriesMULTI-MASTER
TypeInterchangeable
Additional Information
Standards/ApprovalISO 13399
